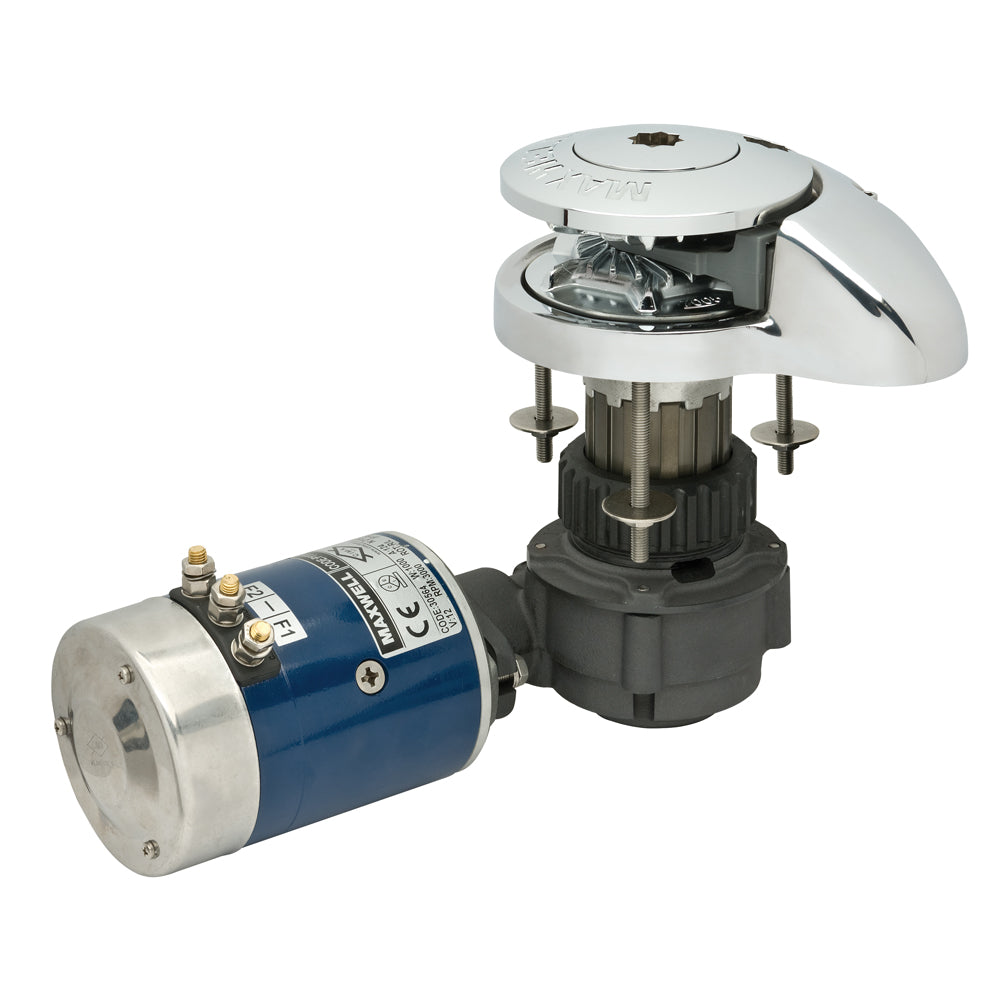

Maxwell RC 8-6 Vertical Windlass 1/4" Chain, 1/2" Rope 12V [RC8612V]

Maxwell RC 8-6 Vertical Windlass 1/4" Chain, 1/2" Rope 12V [RC8612V]

by Maxwell
Save $377.00
$1,885.00
$1,508.00

Notify me when back in stock

RC8-6 Vertical Windlass 1/4" Chain, Rope 1/2" 12v

Package Includes

  • Windlass
  • On/Off Breaker Panel
  • Reversing Solenoid
  • Up/down Panel Switch
  • Emergency crank / clutch release handle


Features

  • Simple two piece installation saves time and money and allows easy retrofitting without disassembly of the windlass
  • Unique spacer tube design allows installation through virtually any deck thickness and the multiple mounting positions and self aligning gearbox ensure optimal location of gearbox and motor in virtually all installation situations
  • Fully automatic rope / chain windlass is designed to effortlessly retrieve and deploy 1/4" (6mm / 7mm) chain spliced to 1/2" (12 mm) three strand or 8-brait (plait) rope
  • The ingeniously designed rope/chain gypsy (chainwheel) is able to accommodate a wide range of chain pitch differences within the specified chain size diameters suitable for use with the RC8 Series
  • Full disassembly capability of topworks utilising handle provided and an Allen key
  • The RC8 Series is manufactured from marine-grade 316 stainless steel for long term durability
  • The heavy duty stainless steel pressure arm is designed to effectively help grasp the rope/chain splice, giving the RC8 an unparalleled level of performance
  • In combination with a heavy duty, large wire diameter, stainless steel preloaded spring, the pressure arm always exerts maximum control pressure
  • The RC8 works just as effectively with all-chain rodes for those who desire a Low Profile, elegantly styled windlass on their foredeck
  • Huge, through deck hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker
  • Full disassembly capability of the topworks utilising only the handle provided and an Allen key
  • Manual override using the emergency crank handle provided
  • Sealed oil bath and marine-grade hard anodised, alloy gearbox provides high efficiency output drive via precision worm and worm wheel


All RC Series windlasses are fitted with Maxwell's unique Wave Design™ chainwheel

  • This patented rope/chain wheel incorporates two unique design concepts that greatly improve the handling and control of the rope/chain spliced rode
  • The outer ribs of the chainwheel are angled slightly forward ensuring that the rope and the chain are smoothly guided in the wheel during anchor retrieval
  • As the rope pulls into the wheel, the opposite facing inner ribs grip the rope in an undulating manner, securing the rope more firmly in a 'wave pattern' action that is far superior to the traditional 'jam cleat' manner of holding the rope
  • Not only does this Wave Design™ hold the rope more securely, it is also kinder on the rope resulting in increased longevity of your anchor rode
  • Wave Design™ Chainwheel Is fitted to all RC Series windlasses, designed for anchor rodes with any marine grade chain, G4, BBB, Proof Coil and Metric

    Specifications

    • Material: Marine-Grade 316 Stainless Steel
    • Power: 12 Volt DC, 600 Watts
    • Chain / Short Link: 1/4" ( 6mm / 7mm )
    • Maximum Pull: 770 lbs ( 350kg )
    • Rope Size: (Nylon)* (3-Strand or 8 Plait Recommended) 1/2" (12mm)
    • Chain Speed (Anchor Retrieval): 92 Feet per Minute (28 m / min)
    • Rope Speed (Anchor Retrieval): 79 Feet per Minute (24 m / min)This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

      Specifications:

      • Chain - Diameter (Inches): 1/4"
      • Freefall: Yes
      • Rope Diameter (Inches): 1/2"
      • Vertical/Horizontal: Vertical
      • Box Dimensions: 11"H x 17"W x 19"L WT: 31.8 lbs
      • UPC: 1000000004847
