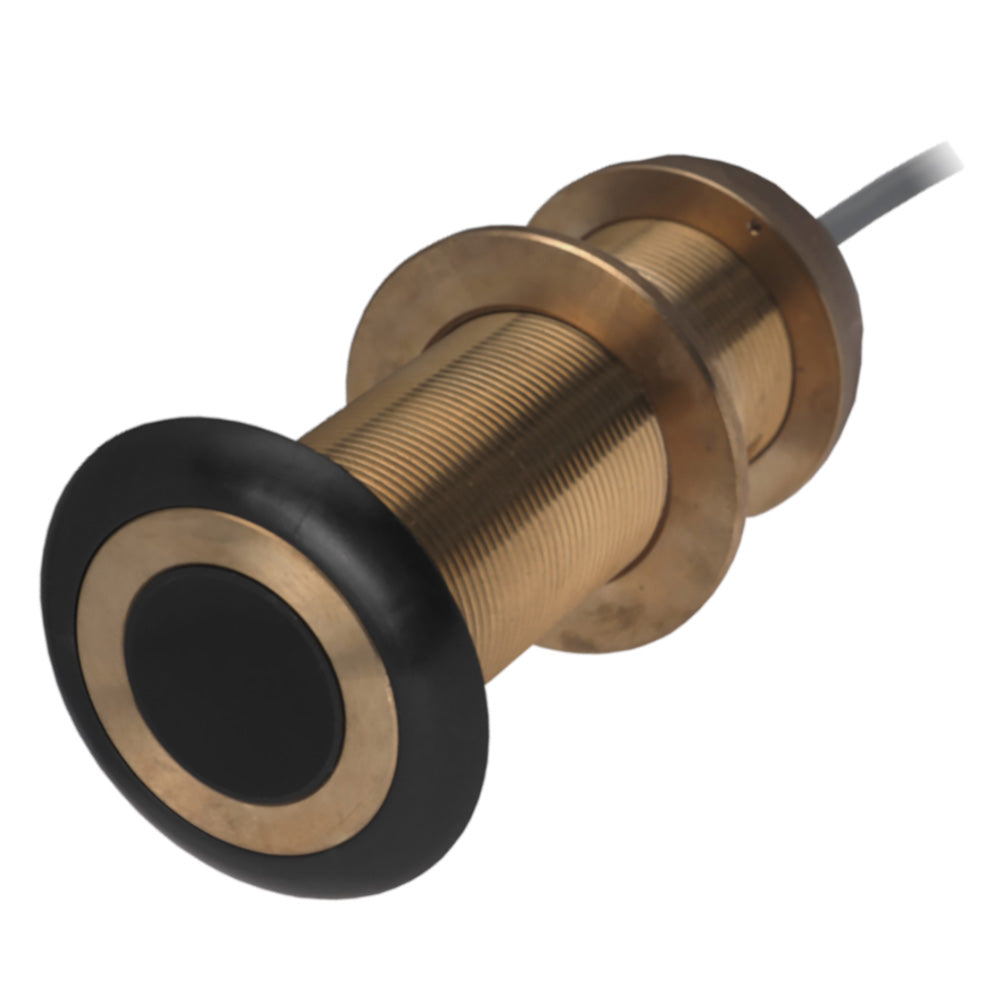

Airmar DT800 NMEA 2000 Bronze Retractable Long Stem Thru-Hull w/Depth Temperature [DT800L-235-N2]

Airmar DT800 NMEA 2000 Bronze Retractable Long Stem Thru-Hull w/Depth Temperature [DT800L-235-N2]

by Airmar
Save $86.46
$939.99
$853.53

Notify me when back in stock

Description

DT800 NMEA 2000 Bronze Retractable Long Stem Thru-Hull with Depth & Temperature

The DT800 utilizes Airmar’s proven Tilted Element and broadband technologies in this depth and temperature Smart™ Sensor. The DT800 is a long-stemmed, low-profile, retractable, thru-hull sensor that accurately computes depth and temperature data and sends it to any NMEA 2000® network. Airmar's Smart™ Sensors have embedded microelectronics—the transducer element and signal processor are only millimeters apart. The signal from the depth transducer is processed right inside the sensor itself. All that is needed to receive depth and temperature data is a single cable into a compatible network or display.

The ceramic is tilted inside the housing, compensating for hull deadrise and orienting the transducer beam straight down. This results in strong echo returns and accurate depth readings. The DT800 is sold with a choice of rugged housings—plastic, bronze, or stainless steel—to accommodate any vessel type or hull material. These low-profile housings do not affect hull performance and will give accurate readings at high speeds. The housing features a water valve that minimizes water entering the boat when the retractable insert is being removed and replaced with the blanking plug.

Features:

  • Depth and fast-response water-temperature sensing
  • Depth performance from 0.5 to 183 m (1.6 to 600')
  • 235 kHz frequency prevents mutual interference with other echosounders on the vessel
  • NMEA 2000 standard
  • Retractable insert for cleaning and safe storage

Specifications:

  • Display Connector: NMEA 2000 Micro
  • Power Rating: 100 W
  • Functions: Depth, Temperature
  • Material: Bronze
  • Mounting Style: Low Profile Thru-Hull
  • Tilt Angle: 0°
  • Deadrise Range: Up to 12° w/out fairing. Up to 28° with fairing
  • Hull Material: Fiberglass or wood
  • Usable Shaft Length: 102 mm (4.00")
  • Hole Size: 51 mm (2")
  • Frequency Band: 235 kHz
  • Voltage: 9 to 16 VDC
  • Common Use: Cruising/Racing Sailboats, Leisure/Yachting, Fishing
  • Country of Origin: USA
  • Temperature Accuracy: ±0.5°C (±1.8°F)
  • Cable Length: NMEA 2000®: 6 m (20')
  • Conventional Beam: 12°
  • Data Rate: 1X per second
  • Max Deadrise Angle: 28°
  • Speed Range: Up to 45 knots
  • Tilted Element: Yes
  • Weight: 3.9 kg (8.7 lb.)
  • Max Depth: 0.5 to 180 m (1.6 to 590')
  • Water Temperature: -10° to 40°C (14° to 104°F)
  • Acoustic Window: Urethane
