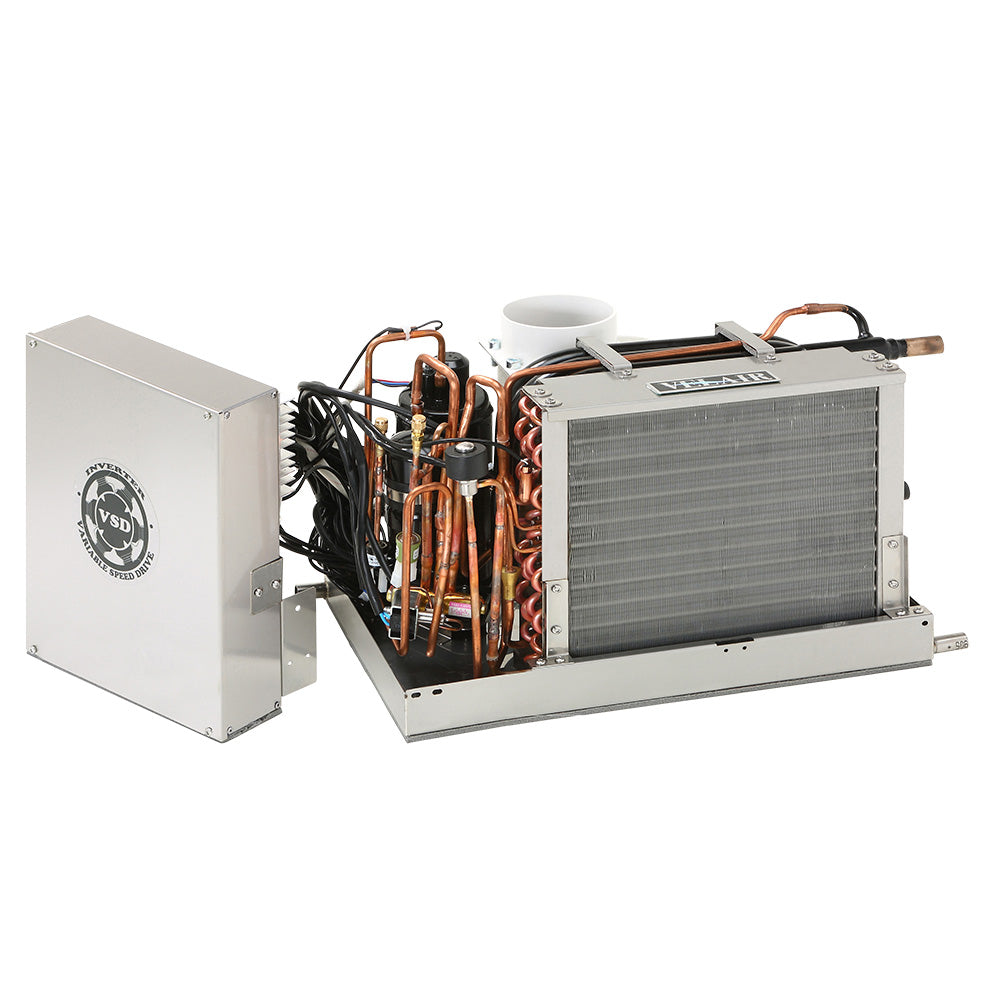

Velair Compact i16VSD SMART Gen II Marine Air Conditioner Unit - 115V - 16, [24832JU]

by Velair
$4,504.13

Notify me when back in stock

Description

Compact i16VSD  SMART Marine Air Conditioner Unit - 115V - 16,000 BTU (Generation 2)

Velair's i-line VSD (Variable Speed Drive) series units feature built-in inversion technology for better efficiency, less power consumption, and no more start-up power spikes.  VSD units offer top comfort with no temperature or humidity fluctuation and work properly even on smaller generators and weak shore power.

Self-contained VSD air conditioners provide the best of the existing technology - a compressor featuring a  brushless DC motor and an inverter that constantly controls the speed and cooling power delivered.

The compressor continuously changes its running speed depending on the ambient and set temperature.  The compressor also operates at maximum power to cool rapidly.

Features:

  • VSD (Variable Speed Drive) eliminates start-up spikes
  • Highest energy efficiency
  • Minimal fan noise and vibration
  • Reverse-cycle for heat pump function
  • Constant temperature output maximizes comfort
  • The cabin control display offers ease of use
  • Smart Control iOS and Android App available to control all AC functions

Generation Two Difference:

  • Removable electric box for compact applications

Technical Specifications:

  • Input voltage: 115 V
  • Refrigerant type: R32
  • Heat Pump: Yes
  • Cooling Capacity - 16,000 BTU
  • Maximum Air Flow: 550 m3/h
  • Air Duct Diameter: 5" (125mm)
  • Sea Water Flow Rate: 4.5 gpm/17 L/min
  • Dimensions L x H x P (with electrical box): 25.6" x 13" x 14" (650 x 330 x 355 cm)
  • Weight: 61.7 lbs (28 kg)

In the Box:

  • Self-contained AC unit
  • Digital control and 26.25' (8 M) cable
  • Instruction manual

*Sold as an Individual

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Capacity (BTU): 16,000 BTU
  • Maximum Air Flow: 323 CFM
  • Refrigerant Type: R32
  • Sea Water Flow Rate: 4.5 GPM
  • Voltage - Input Range (Volts): 115v
  • Box Dimensions: 17"H x 19"W x 28"L WT: 69.05 lbs
  • UPC: 702755055815

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)
